Auto Strapping Machine [A8 Series]
Description

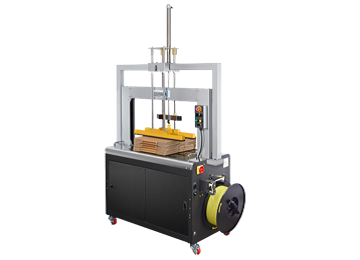

A-85N is designed for various applications and able to work with different strap widths, wide tension range as well as high strapping speed with AC motor driven. Diversity of assist functions is all as standard equipped.
Features
• Looping ejector
• Short feeding sensor
• Coil end eject system
• Electronic tension control
• Waist auto loading system
• Run on 5,6,9,12,15 mm strap
• Advanced performance ( over 40 straps/min.)
Specification
| Speed | 40 strap / min |
| Strap Width | 5, 6, 9, 12, 15 mm (specified) |
| Tension Range for 5,6mm | 3 ~ 30 kgs |
| Tension Range for 9,12,15mm | 5 ~ 70 kgs |
| Standard Arch | 650.W x 500.H mm |
| Motor | AC |
| Sealing Method | Heating element |
| Table Height | 805 mm |
| Power Supply | 230V, 50 / 60Hz, 1PH |
| Power Consumption | 1.2 kw |
| Layout Dimension | 1230.L x 580.W x 1430.H mm |
